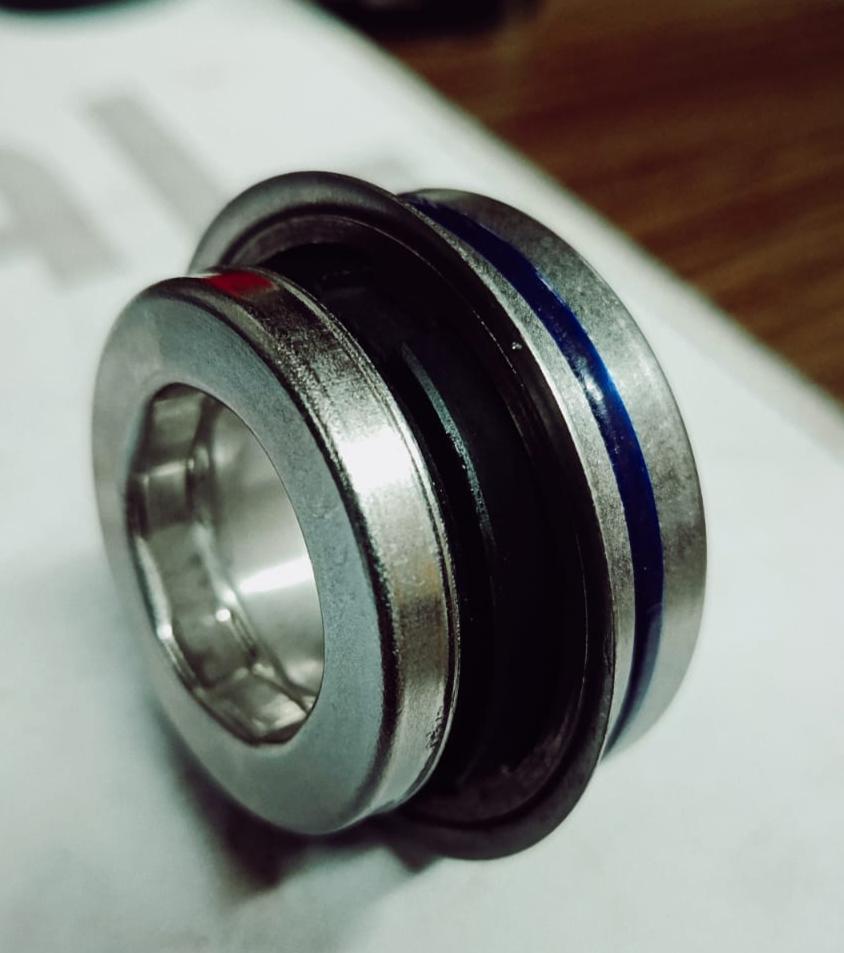

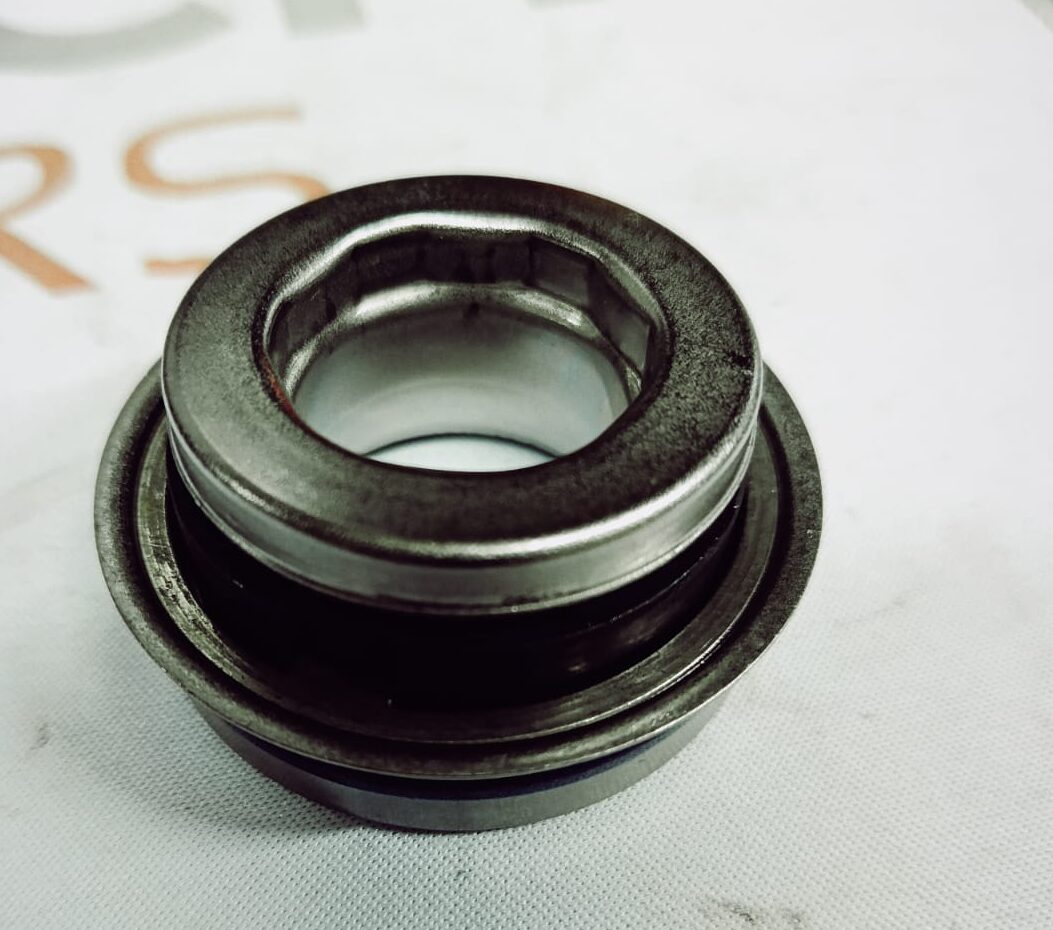

Cat 336-2212 Water Seal Assembly
R1,436.00
Mechanical face seal used primarily in heavy-duty Caterpillar diesel engines,
Large commercial machines, and Industrial Equipment Water Pumps.

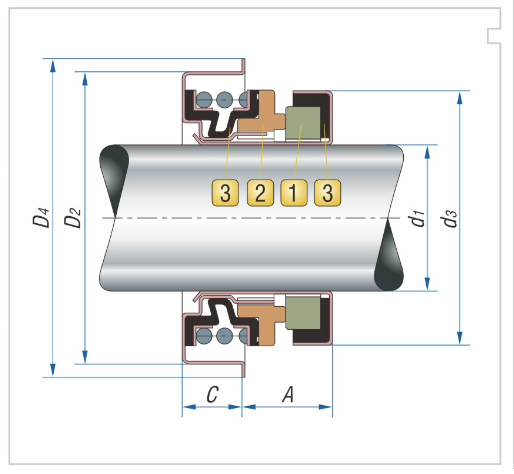

DIMENSIONS
“D1” 25.31 mm (1 in) sleeve inner diameter
“D2” 51.07 mm (2 in) outer cap diameter.
Compatible Engines and Machines
The 336-2212 seal fits specific heavy machinery and commercial engine models:
- Cat Engines: C15, C18 (Industrial, Marine, and Generator Set configurations), C27, C32, 3406E, and 3456
- Cat Equipment: D9T Track-Type Tractors, 365C and 390D Excavators, and 385C Excavator engines
Key Specifications
- Type: Mechanical seal assembly with O-ring seals
- Materials: Nitrile rubber (NBR) O-ring - Silicon and Carbon sealing face
- Temperature Range: Operates safely from -40°C to +150°C
